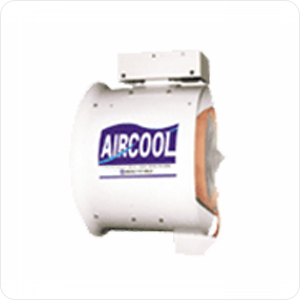

HR-300

• Coverage
  Voltage
  Power Consumption
  Humidification Capacity
  Water pressure
  Dimensions
  Air Volume
  Range / throw
  Disc

• 100-150m²(1,176-1,614ft²)
  230v / 50Hz
  210W
  20-48 Liter / hr
  1-6bar / hr
  670x670x570mm (LxWxH)
  5,880²/hour
  20-35m
  3500rpm

Features

• Centrifugal spraying system without nozzles.
  Easy installation and No need of maintenance.
  Separate operation of fan and sprayer.
  Use normal water pressure or low pressure pump.

Application

• Textile Industry, Greenhouse, Livestock Shed, Mushroom Growing, Outdoor Cooling

Notes

• Maintain constant water level.
  Check the operation periodically.

Function

• Temperature control : cooling effect through the evaporation of water particles
  Humidity control : spraying water in ultra light volume particle
  Air circulation : ventilation can eliminate polluted air from the greenhouse and replace them with fresh air from outside
  Full automatic operation via control box
